> > PWC Hoist

Products

PWC Hoist

Models: 1000 / 1250 / 1500

The PWC Hoist, also referred to as the “Jet Ski”, is an electric-powered, open-gear mechanical hoist that has been manufactured by AMS for over 30 years. It is sold by a wide variety of lift manufacturers, particularly on their PWC lifts. The unit is sold in a standard kit that includes the wired electric motor and plastic cover.

Where to Buy

Available in three models:

1500 - 8" Pulley (AX26 Belt)
1250 - 7" Pulley (AX24 Belt)
1000 - 6" Pulley (AX22 Belt)

Product Features:

Made in the USA - The Original PWC Hoist - Produced for over 30 years
Built-in, welded cable spool
Laser-cut, E-Coated steel housing
HD ductile iron main gear casting for greater tensile strength
Includes white plastic cover & stainless steel backing plate
All fasteners and hardware stainless steel
Aluminum motor and drive pulleys

OVERALL DIMENSIONS

17.5

10.5

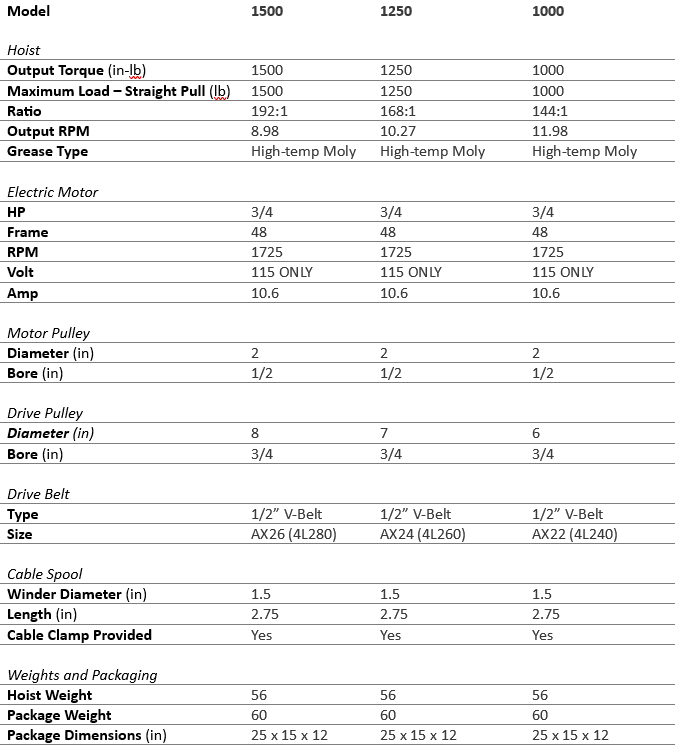

SPECIFICATIONS

MODEL

1500

1250

1000

Hoist

Output Torque (in-lb)

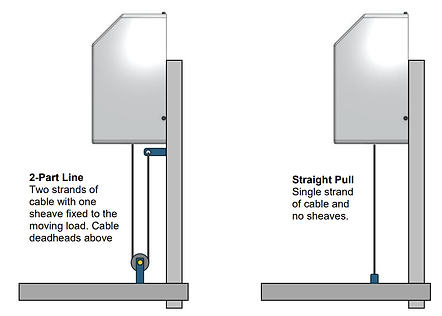

Maximum Load - Straight Pull (lb)

Ratio

Output RPM

Grease Type

Electric Motor

Frame

RPM

Volt

Amp

Motor Pulley

Diameter

Bore

Drive Pulley

Diameter (in)

Bore (in)

Drive Belt

Type

Size

Cable Spool

Winder Diameter (in)

Length (in)

Cable Clamp Provided

Weights and Packaging

Hoist Weight

Package Weight

Package Dimensions

1500

192:1

8.98

Hi-temp Moly

3/4

1725

115

10.6

1/2

3/4

1/2" V-Belt

AX26

1.5

2.75

Yes

25 x 15 x 12

1250

168:1

10.27

Hi-temp Moly

3/4

1725

115

10.6

1/2

3/4

1/2" V-Belt

AX24

1.5

2.75

Yes

25 x 15 x 12

1000

144:1

11.98

Hi-temp Moly

3/4

1725

115

10.6

1/2

3/4

1/2" V-Belt

AX22

1.5

2.75

Yes

25 x 15 x 12

MOUNTING DIMENSIONS

Standard Items

PWC Gearbox

P/N 10000HW

Electric Motor

P/N 14130T

Drive Pulley

P/N 14680 (1500)

P/N 14670 (1250)

P/N 14660 (1000)

Drive Belt

P/N AX26 (1500)

P/N AX24 (1250)

P/N AX22 (1000)

Plastic Cover

P/N 11010CJS

Backing Plate

P/N 01721

Customizable Items

Control Wire 14-5 SJTW

- 5 FT Standard

- Customizeable 0-45 FT

P/N 16000

Reversing Switch

- Spring (Momentary) or

Maintain available

GFCI Power Cord

- 115V Inline 6 FT or 115V Plug-in 5 FT available

P/N 14450S.B (Spring)

P/N 14450M.B (Maintain)

P/N 14460IN-PT (Inline)

P/N 14460PI-PT (Plug-in)

Q: Do you have a larger motor than 3/4 HP?

No, in the 48 frame size, 3/4 HP is the largest electric motor available. Even if a larger motor was available, it would not change the maximum output torque of the hoist as that is based on the bull gear.

Q: How can I use the PWC Hoist on a 230V circuit?

Currently, the PWC Hoist can only be used on a 115V circuit due to the nature of the electric motor. We are working to source a dual-voltage motor that would be capable of operating at 230V as well but we have been unable to find one that will clear the hoist cover.

Q: My cable spool has deteriorated and needs to be replaced, is it possible to buy the spool only?

Yes, the cable spool can be replaced. Although we go through several steps to try to protect the spool from corrosion, the lift cable eventually tears up the coating and exposes the metal which leads to corrosion over time. Please contact us for further information on obtaining a replacement. Replacing the spool is a moderately involved procedure that does require partial diassembly of the hoist and should only be performed by a professional.

Q: Do you supply the lift cable?

No, we do not supply lifting cable of any kind. Lift cable would be provided by the Lift Manufacturer

Q: Is there a DC option for the PWC Hoist?

Unfortunately, there is currently no DC option for the electric motor on the PWC Hoist as they are too large to clear the cover and are unavailable in the 48 frame size for the mounting on the hoist.

Q: Is there a remote control option?

Yes, the PWC Hoist is compatible with most boat lift remote controls and the reversing switch can be upgraded to a GEM remote control for an additional fee.
